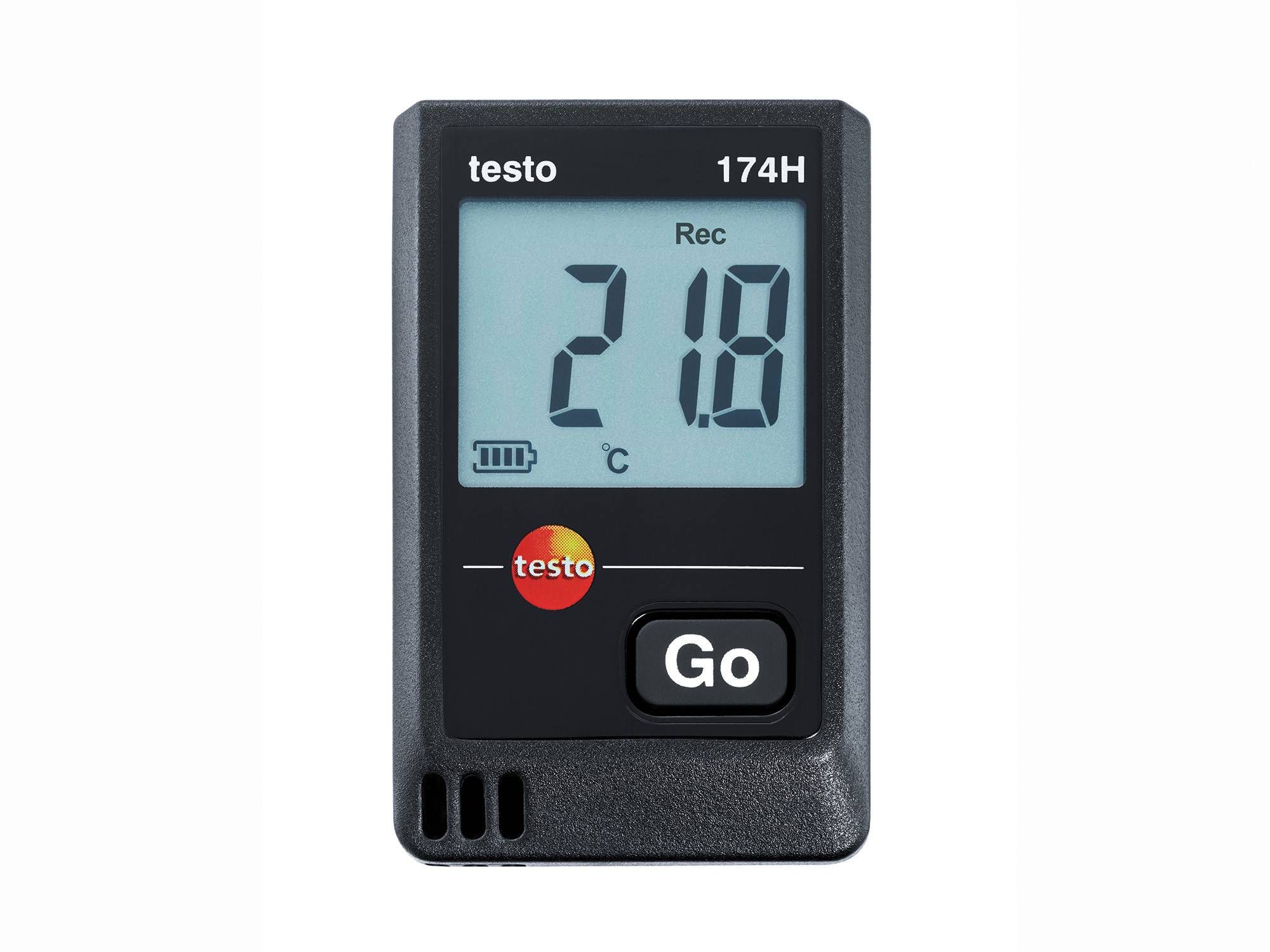

The testo 174 H allows you to monitor temperature and humidity sensitive goods – including foods, archives or metal parts that are susceptible to surface rust.
rpm - Optical
Temperature - NTC
Measuring range: -20 to +70 °C
Accuracy: ±0.5 °C (-20 to +70 °C)
Resolution: 0.1 °C
Humidity - Capacitive
Measuring range: 0 to 100 %RH*
Accuracy: ±3 %RH (2 to +98 %RH) at +25 °C ±0.03 %RH/K ±1
Digit Resolution: 0.1 %RH
* Not for condensing atmospheres.
General technical data
Weight: 34 g
Dimensions: 60 x 38 x 18.5 mm
Operating temperature: -20 to +70 °C
Product-/housing
material: Plastic
Protection class: IP20
Channels: 2
internal Product colour: Black
Standards: 2011/65/EU;
EU-guideline 2014/30/EU
Measuring rate: 1 min - 24 h
Battery type: 2 x 3V
button cell (CR 2032)
Battery life: 1 year (15 min measuring cycle, +25 °C)
Memory: 16,000 measuring values
Storage temperature: -40 to +70 °C

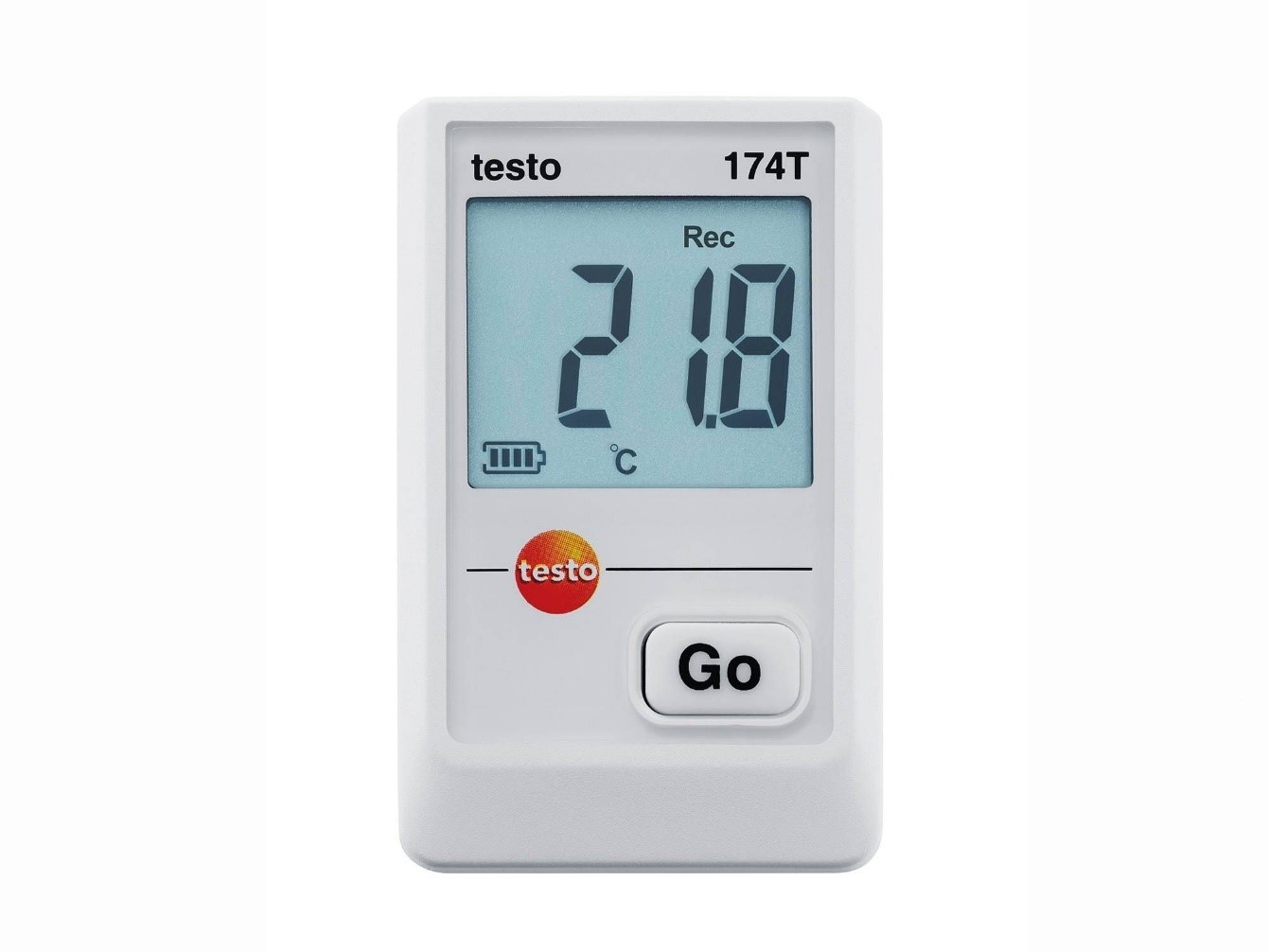

The testo 174T mini temperature data logger helps you comply with the specified temperature ranges. It records the temperature values reliably and thus ensures uninterrupted measurement data recording and documentation.
General technical data
Weight: 35 g
Dimensions: 60 x 38 x 18.5 mm
Operating temperature: -30 to 70 °C
Product-/housing
material: Plastic
Protection class: IP65
Channels: 1 internal
Product colour: white
Standards: EU-guideline 2014/30/EU; 2011/65/EU
Measuring rate: 1 min - 24 h
Battery type: 2 x 3V
button cell (CR 2032)
Battery life: 500 days (15 min measuring cycle, +25 °C)
Memory: 16,000 measuring values
Storage temperature: -40 to +70 °C
Temperature - NTC
Measuring range: -30 to +70 °C
Accuracy: ±0.5 °C (-30 to +70 °C)
Resolution: 0.1 °C

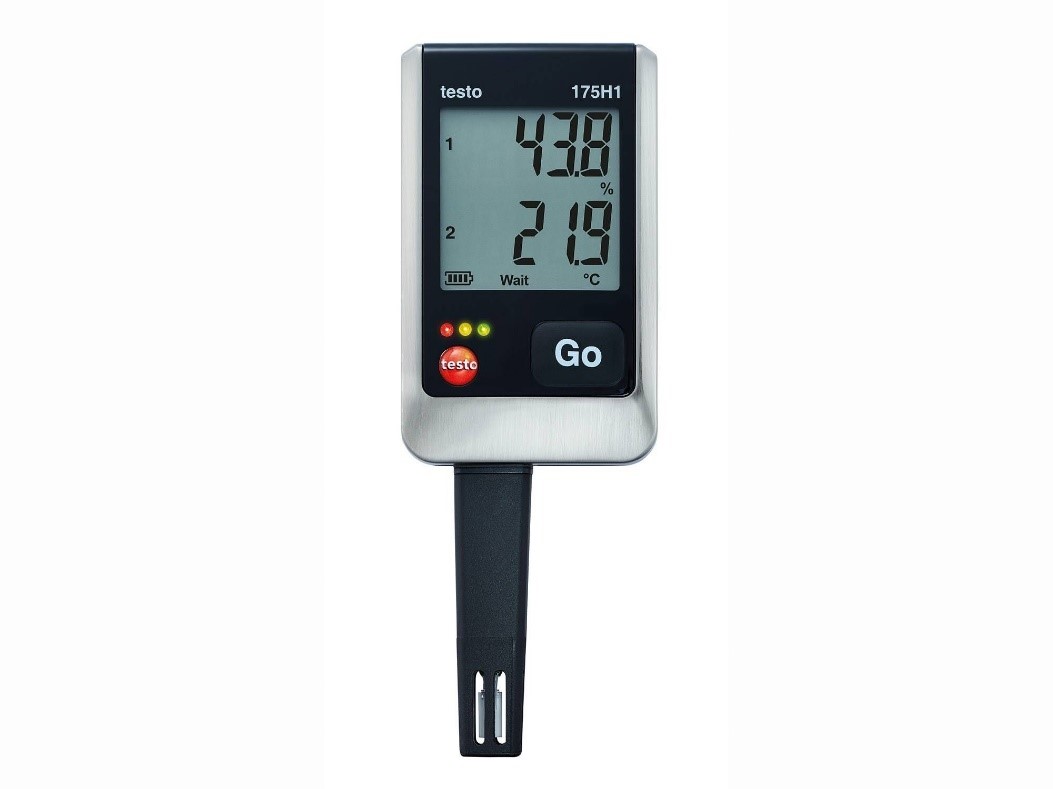

The testo 175 H1 data logger measures, monitors and logs the temperature and relative humidity in buildings and closed rooms.
Temperature - NTC
Measuring range: -20 to +55 °C
Accuracy: ±0.4 °C (-20 to +55 °C) ±1
Digit Resolution: 0.1 °C
Humidity - Capacitive
Measuring range: 0 to 100 %RH*
Accuracy: ±2 %RH (2 to 98 %RH) at +25 °C ±0.03 %RH/K ±1 Digit < ±1 %RH / year drift at +25 °C
Resolution: 0.1 %RH
* Not for condensing atmospheres.
Dewpoint (calculated)
Measuring range: -40 to +50 °Ctd
Accuracy: +0.03 %RH/K ±1
Digit General technical data
Weight: 130 g
Dimensions: 149 x 53 x 27 mm
Operating temperature: -20 to +55 °C
Product-/housing
material: Plastic
Protection class: IP54
Channels: 2 internal
Product colour: Black
Life-time sensor: Long-term drift of the sensor <1% RH / year (ambient temperature + 25 ° C)
Standards: EU-guideline 2014/30/EU; 2011/65/EU
Measuring rate: 10 s - 24 h
Battery type: 3 x AIMn type AAA or Energizer
Battery life: 3 years at 15 min. meas. rate, +25 °C
Interface: mini usb, SD card slot
Memory: 1,000,000 measuring values
Storage temperature: -20 to +55 °C

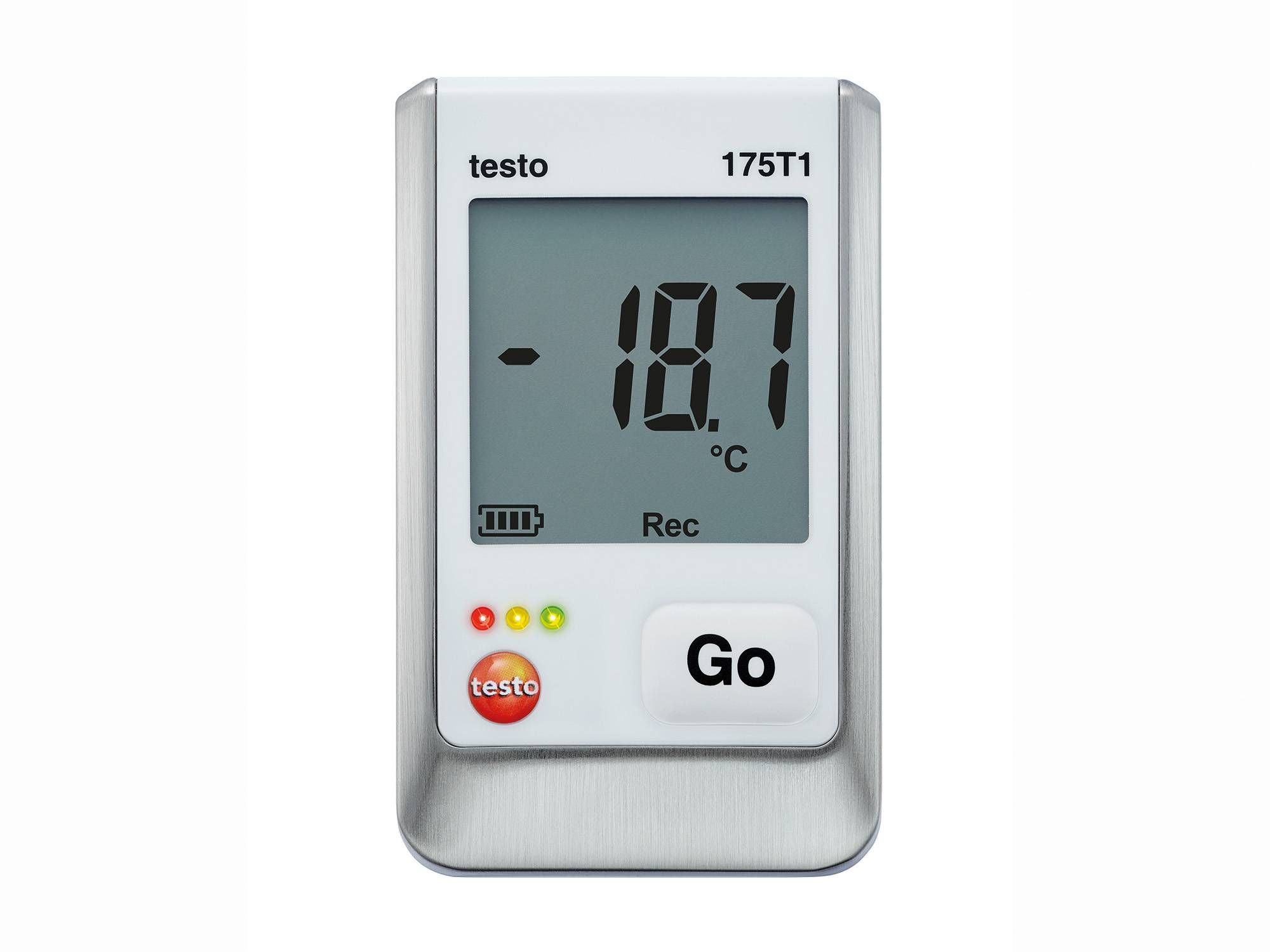

With its integrated temperature sensor, the Testo 175 T1 data logger is perfect for monitoring and recording the temperature in storage facilities as we as cool and cold rooms.
Temperature - NTC
Measuring range: -35 to +55 °C
Accuracy: ±0.5 °C (-35 to +55 °C) ±1
Digit Resolution: 0.1 °C
General technical data
Weight: 130 g Dimensions: 89 x 53 x 27 mm
Operating temperature: -35 to +55 °C
Product-/housing
material: Plastic
Protection class: IP65
Channels: 1 internal
Product colour: white
Standards: EU-guideline 2014/30/EU; DIN EN 12830; 2011/65/EU
Measuring rate: 10 s - 24 h
Battery type: 3 x AIMn type AAA or Energizer
Battery life: 3 years (15 min. meas. rate, +25 °C)
Interface: mini usb, SD card slot
Memory: 1,000,000 measuring values
Storage temperature: -35 to +55 °C

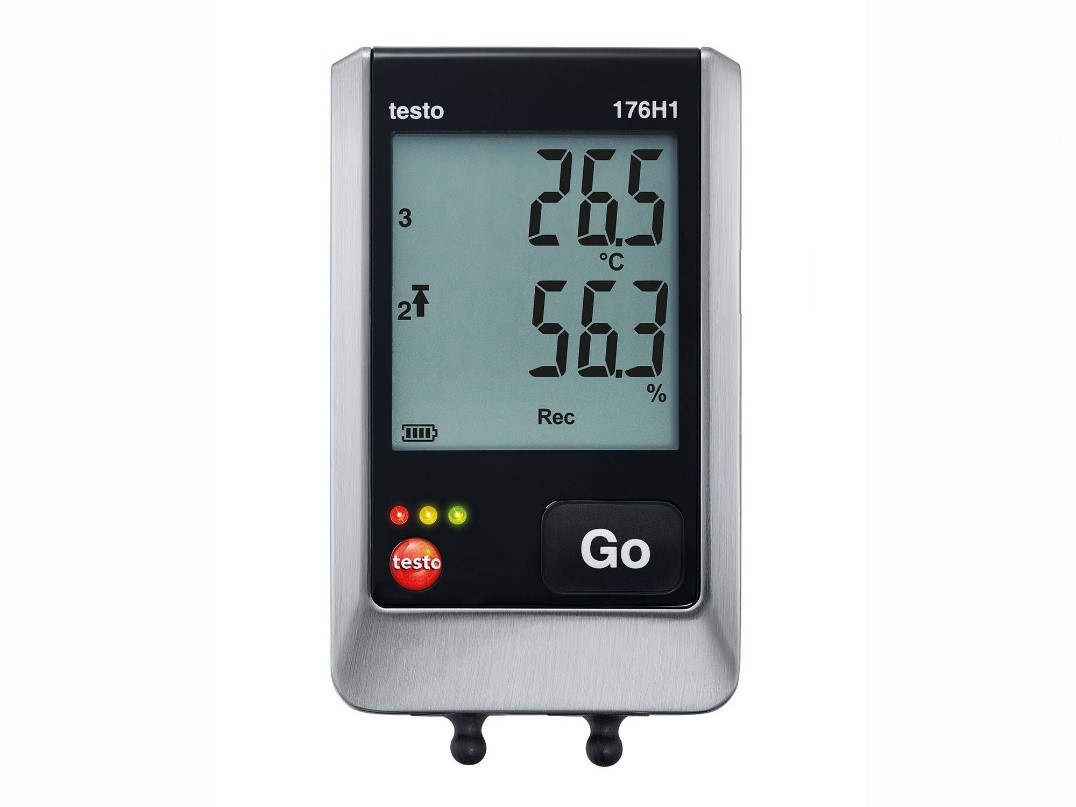

Testo 176 H1 is a 4-channel data logger. With the help of this you can log temperature & humidity. Up to 2 probes (temperature and/or temperature/humidity) can be connected to it.
Temperature - NTC
Measuring range: -20 to +70 °C
Accuracy: ±0.2 °C (-20 to +70 °C) ±1 Digit ±0.4 °C (Remaining Range) ±1
Digit Resolution: 0.1 °C
Humidity - Capacitive
Measuring range: 0 to 100 %RH*
Accuracy: dependent on probe selected
Resolution: 0.1 %RH
*Not for condensing atmospheres.
General technical data
Weight: 220 g
Dimensions: 103 x 63 x 33 mm
Operating temperature: -20 to +70 °C Product-/housing
material: Plastic
Protection class: IP65
Channels: 4 external
Connectable probes: 2 x NTC temperature probe or 2 x humidity probe
Product colour: Black
Standards: EU-guideline 2014/30/EU; 2011/65/EU
Measuring rate: 1 s to 24 h; 2 s to 24 h (online measurement)
Battery type: 1 x Lithium (TL-5903)
Battery life: 8 years at 15 min. meas. rate, +25 °C
Interface: mini usb, SD card slot
Memory: 2,000,000 measuring values
Storage temperature: -40 to +85 °C

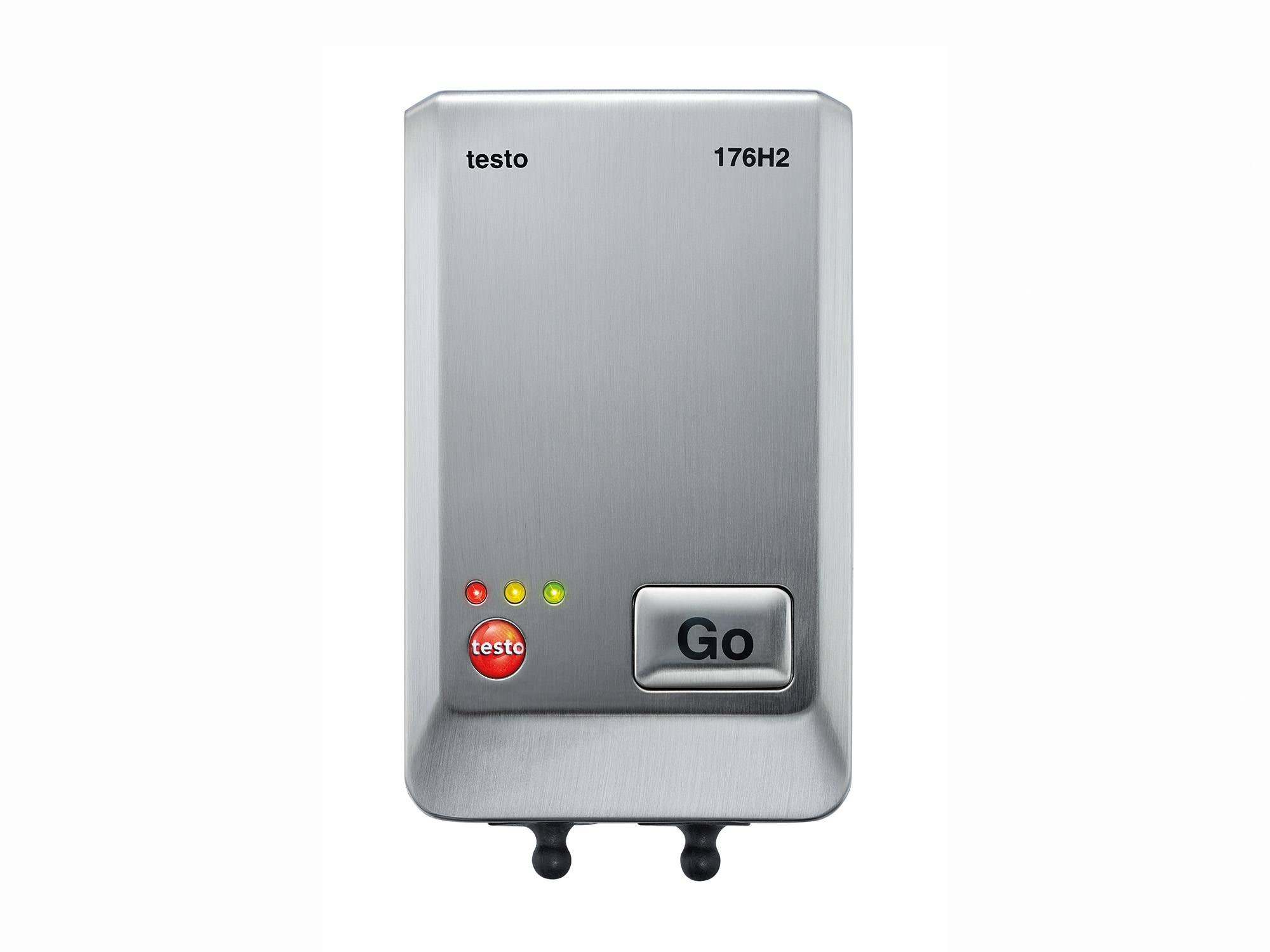

The data logger testo 176 H2 is perfect for analyzing climatic development by using long-term measurement. Two probes (humidity/temperature) can be connected to it, by which you can measure humidity and temperature at two different points at the same time. Testo 176 H2 has large data memory (up to 2 million measurements can be recorded) and has longer battery life (up to 8 years), for which long term data recording of climate is possible.
Temperature - NTC
Measuring range: -20 to +70 °C
Accuracy: ±0.2 °C (-20 to +70 °C) ±1 Digit
±0.4 °C (Remaining Range) ±1 Digit
Resolution: 0.1 °C
Humidity - Capacitive
Measuring range: 0 to +100 %RH*
Accuracy: dependent on selected probe
Resolution: 0.1 %RH
* Not for condensing atmospheres
General technical data
Weight: 430 g
Dimensions: 103 x 63 x 33 mm
Operating temperature: -20 to +70 °C
Product-/housing material: Metal housing
Protection class: IP65
Channels: 4 external
Connectable probes: 2 x humidity probe
Product colour: silver
Standards: EU-guideline 2014/30/EU; 2011/65/EU
Measuring rate: 1 s to 24 h; 2 s to 24 h (online measurement)
Battery type: 1 x Lithium (TL-5903)
Battery life: 8 years at 15 min. meas. rate, +25 °C
Interface: mini usb, SD card slot
Memory: 2,000,000 measuring values
Storage
temperature: -40 to +85 °C

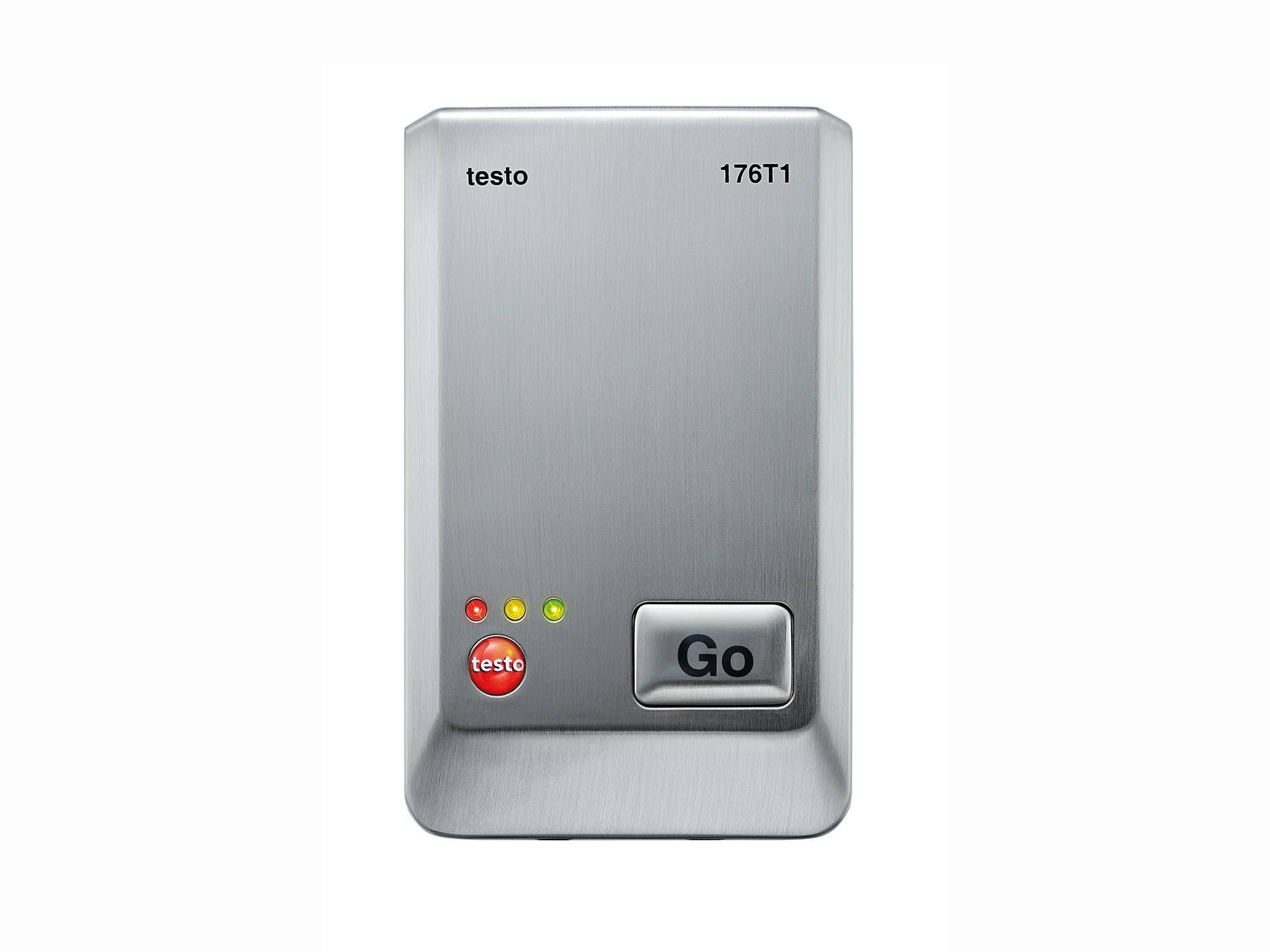

With Pt100 temperature sensor of accuracy up to 0.2 °C, the single-channel data logger testo 176 T1 is perfect for high-precision temperature monitoring. Up to 2 million readings can be recorded in its memory. Due to long battery life (up to 8 years) long-term monitoring and recording is possible.
Temperature - Pt100
Measuring range: -35 to +70 °C
Accuracy: ±0.2 °C (-35 to +70 °C) ±1 Digit
Resolution: 0.01 °C
General technical data
Weight: 390 g
Dimensions: 103 x 63 x 33 mm
Operating temperature: -35 to +70 °C
Product-/housing material: Plastic
Protection class: IP68, 1 meter
Channels: 1 internal
Product colour: silver
Standards: EU-guideline 2014/30/EU; 2011/65/EU; EN 12830
Measuring rate: 1 s to 24 h; 2 s to 24 h (online measurement)
Battery life: 8 years (15 min. meas. rate, +25 °C)
Battery type: 1 x Lithium (TL-5903)
Interface: mini usb, SD card slot
Memory: 2,000,000 measuring values
Storage
temperature: -40 to +85 °C

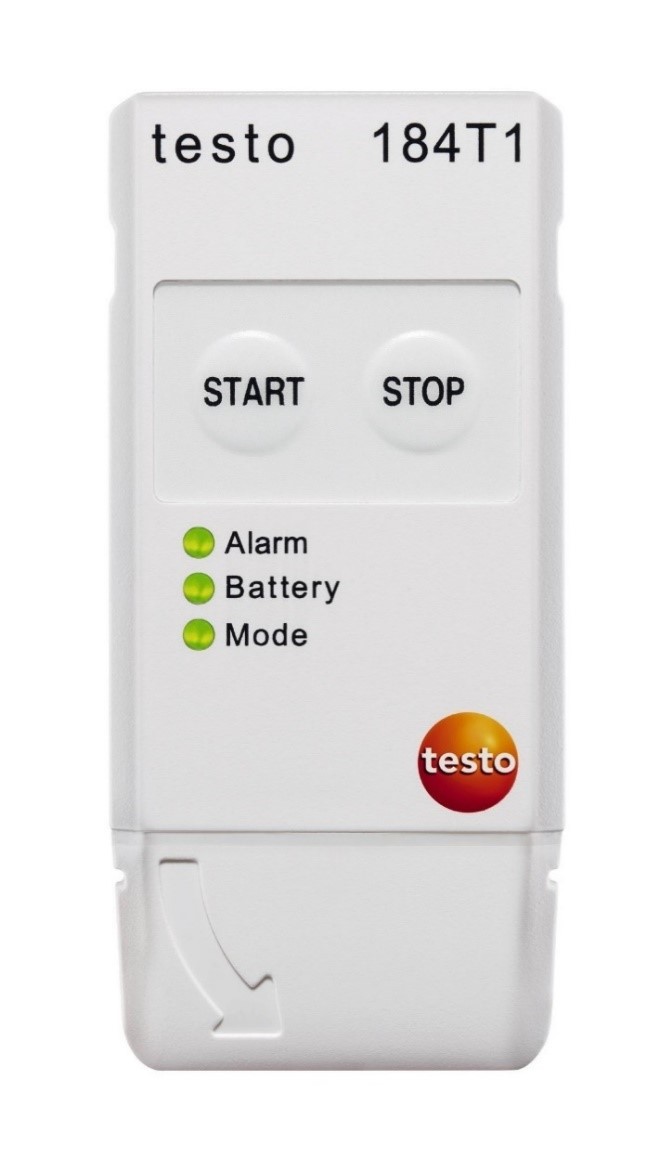

For a maximum of 90 days, you can monitor the transport of critical goods like foods, pharmaceuticals or electronics, with the help of temperature data logger testo 184 T1. Upon reaching destination, just a glance at the LED display tells you that the configured limit values have been adhered to or not. Detailed information in PDF format can be generated by connecting to a PC. It has memory capacity of storing up to 16000 measurement values.
Temperature - NTC
Measuring range: -35 to +70 °C
Accuracy: ±0.5 °C
Resolution: 0.1 °C
Reaction time: t₉₀
= 30 min
Measuring rate: 1 min to 24 h
General technical data
Weight: 22 g
Dimensions: 35 x 9 x 75 mm
Operating temperature: -35 to +70 °C
Product-/housing material: ABS
Protection class: IP67
System requirements: Adobe® Acrobat Reader
Product colour: white
Standards: EN 12830; CE 2014/30/EU; DIN EN 50581:2013; DIN EN
61326-1:2013; 2011/65/EU
Certificate type: Certified by HACCP International
Channels: 1 internal
Operating time: 90 days days from the first time the program is started
(5-minute measuring cycle, -35 °C)
Authorizations: CE; RTCA/DO-160G
Alarm function: via LED
Battery type: Lithium battery non exchangeable
Interface: USB; NFC
Memory: 16,000 measuring values
For an unlimited period, you can monitor the transport of critical goods like foods, pharmaceuticals or electronics, with the help of temperature data logger testo 184 H1. Upon reaching destination, just a glance at the LED display tells you that the configured limit values have been adhered to or not. Detailed information in PDF format can be generated by connecting to a PC. It has memory capacity of storing up to 60000 measurement values.
Temperature - NTC
Measuring range: -20 to +70 °C
Accuracy: ±0.5 °C (0 to +70 °C)
±0.8 °C (-20 to 0 °C)
Resolution: 0.1 °C
Reaction time: t₉₀
= 30 min
Measuring rate: 1 min to 24 h
Humidity - Capacitive
Measuring range: 0 to 100 %RH
Accuracy: ±1.8 %RH, +3 % of mv (at 25 °C, 5 % to 80 %RH)
±0.03 %RH/K (at 0 to 60 °C)
±1 %rF Hysterese
±1 %rF/year Drift
Resolution: 0.1 %RH
Measuring rate: 1 min to 24 h
General technical data
Weight: 44 g
Dimensions: 40 x 12.5 x 96.5 mm
Operating temperature: -20 to +70 °C
Product-/housing material: ABS
Protection class: IP30
System requirements: Adobe® Acrobat Reader
Product colour: white
Standards: CE 2014/30/EU; CFR 21 Part 11 (in use with testo ComSoft
CFR-Software)
Certificate type: Certified by HACCP International
Channels: 2 internal
Operating time: Unlimited
Authorizations: CE
Alarm function: via LED and Display
Battery type: Lithium battery CR2450, 3V, exchangeable
Battery life: 500 days (at +25 °C and 15 mins measurement rate).
Display type: segment LCD
Display size: one-line
Display ligthing: no
Interface: USB; NFC
Memory: 60,000 measuring values
Storage
temperature: -55 to +70 °C
