Energy Solutions

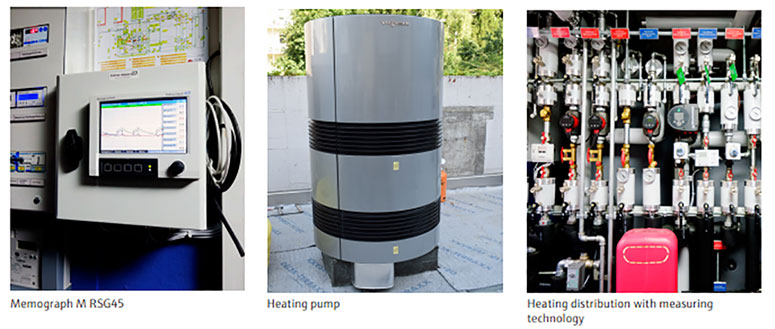

Omlin Energiesysteme AG’s innovative heating systems consist of various heating components. To achieve a high level of energy efficiency within the overall system, it is essential to match individual components perfectly. In order to monitor, analyze and optimize the individual processes as well as the overall process, Omlin Energiesysteme requires a measuring and diagnostic system to record and save measured data continuously and to enable the data to be analyzed and displayed locally. The solution Omlin chose the Memograph M RSG45 Data Manager as the central system component of the measuring and diagnostic system.

The solution Omlin chose the Memograph M RSG45 Data Manager as the central system component of the measuring and diagnostic system.

Advanced Data Manager Memograph M RSG45

• Flexible and high-performance system to record measured data and calculated values continuously and reliably.
• Conventional interfaces, supports a large number of common communication protocols.

• Stored data can be read on a laptop or from a USB stick.
• Remote access to data

Examples of acquired and recorded measured values and calculated variables:

• 10 temperature measurements (heat generation, heat storage, heat consumption, hot water consumption, sanitary circulation losses)
• 4 heat measurements to record the electric power (heat generation, heat consumption)
• 3 water meters with current flow rate to show hot water consumption and circulation flows
• 2 COP calculations (COP – Coefficient of Performance) to present the energy efficiency of the two heating pumps

• 7 electricity meters to show the electric power (heating pump electricity consumption, COP measurement, electric emergency heating elements, electric heating elements for frost protection)
• Recording of the energy output of the thermal solar system
• Calculation of the CO2 savings using integrated math functions based on the recorded measured values
