Be it water or any other liquid, hydrostatic level sensors measure in various applications in different industries, like food, water/wastewater. The Deltapilot and Waterpilot pressure transmitters for hydrostatic level measurement offer the right solution in tanks or wells, submersible or installed outside a vessel. Check out the broad range of hydrostatic level devices for and click on the button below.

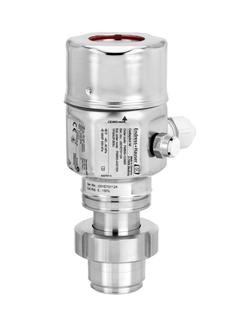

Compact pressure sensor for hydrostatic level measurement with contite measuring cell.
Predecessor model: Deltapilot S DB50, Deltapilot S DB50A, Deltapilot S DB50L, Deltapilot S DB50S

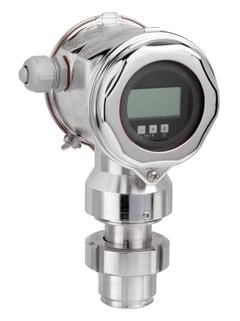

Pressure sensor for hydrostatic level measurement consisting the contite cell, provides highest performance.
Predecessor model: Deltapilot S DB50, Deltapilot S DB50L, Deltapilot S DB50A, Deltapilot S DB50S

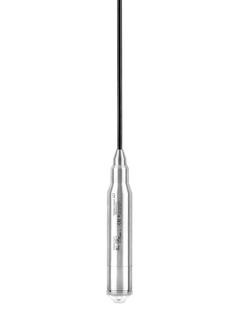

Robust and reliable level measuring probe consisting ceramic measuring cell with HART.
Predecessor model: Waterpilot FMX167

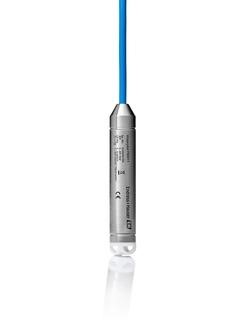

Reliable and simple waterpilot level probe For Freshwater applications
Contite cell: The measuring cell is absolutely protected between the process isolating diaphragm and the rear isolating membrane. Also it is absolutely insensitive to condensation and aggressive gases.
Ceramic cell: The ceramic sensor is a dry sensor, i.e. the process pressure acts directly on the robust ceramic process isolating diaphragm and deflects it. A pressure-dependent change in capacitance is measured at the electrodes of the ceramic substrate and the process isolating diaphragm.
