To compliment your Validation systems, Kaye offers a complete line of accessories including Temperature Calibration References, sensors, feedthru’s, shipping cases, and Validation documentation to assist you in meeting your Validation requirements.
The sensors provide the highest levels of quality, accuracy, and durability. The documentation is designed to assist you in qualifying your Validation systems while ensuring compliance with all applicable regulatory requirements for data integrity and security.
The IRTD is a high accuracy traceable Temperature Standard probe used as part of the Kaye Validation systems for Calibrating Temperature Sensors.

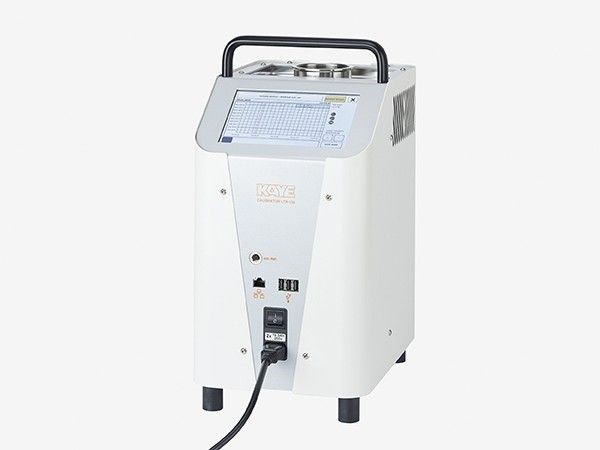

All-in-One Temperature Calibrator; flexible - easy to use from -30 to 150°C and 48 Thermocouple Capacity. The Kaye LTR-150 is the most advanced multi-purpose Temperature Calibrator specifically designed to address the capacity and flexibility needs for thermal validation.

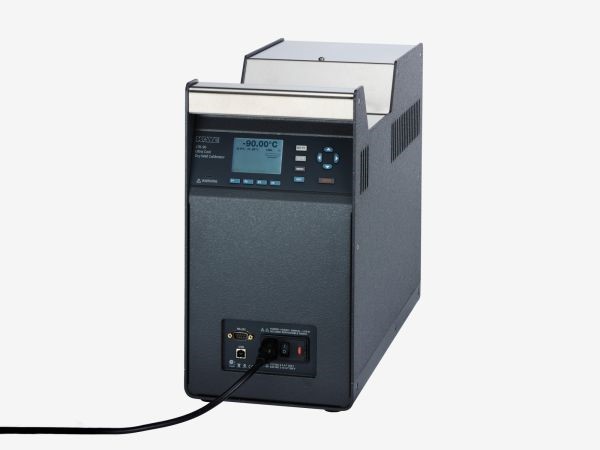

Ultra-Cool Dry Block Calibrator
The Kaye LTR-90 is an ultra-cool dry well calibrator designed for portability and ease of operation. The dry well calibrator operates from -90°C to +140°C and delivers fast response, high stability, and automated sensor calibration for ultra-low temperature applications.

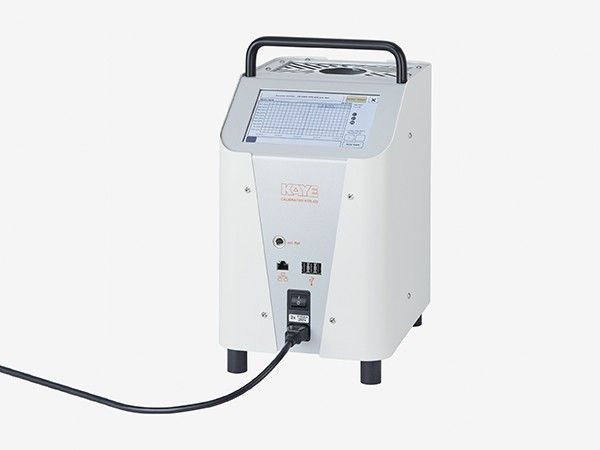

Dry Block Temperature Calibrator flexible - easy to use (30 to 420°C).
The Kaye HTR-420 is the most advanced high temperature calibrator specifically designed to address the capacity and flexibility needs for thermal validation.

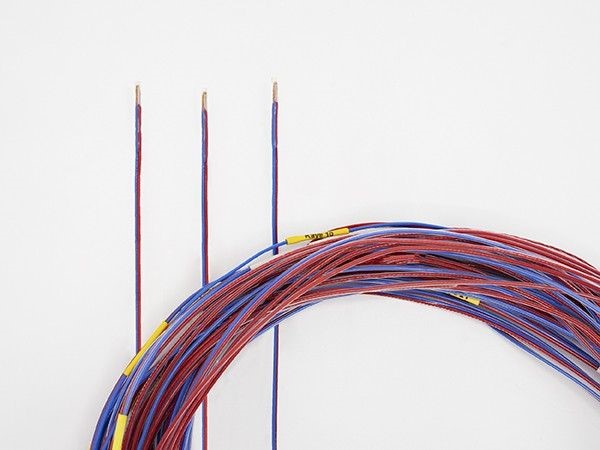

Always select the right Sensor for your Application.
The right sensor which perfectly fits to the application and temperature range is part of your validation system. Kaye offers a broad selection of different sensor types suitable for your application needs.
|
Wire
grade |
Ultra-Premium |
Ultra-Premium |
Auto-Bond Ultra-Premium |
Auto-Bond Ultra-Premium |
Kapton |
|
Model |
3-Strand |
7-Strand |
7-Strand
(AL) |
7-Strand
(AS) |
7-Strand |
|
|
|
|
|
|
|
|
K0258 |
K0255 |
K0259 |
K0263 |
K0250 |
|
|
Gauge |
27
AWG |
22
AWG |
22
AWG |
26
AWG |
22
AWG |
|
EXAMPLE OF CONFIGURED THERMOCOUPLE (40FEET/12M)
LABELED |
|
||||
|
|
3ST1WY-40 |
7ST1WY-40 |
AL-7ST1WY-40 |
AS-7ST1WY-40 |
KW-40 |
|
ACCURACY |
|
||||
|
@
121°C |
±
0.3°C |
±
0.25°C |
±
0.25°C |
±
0.25°C |
- |
|
|
|
|
|
|
|
|
@
300°C |
- |
- |
- |
- |
±
1.2°C |
|
APPROXIMATE SIZE |
|
|
|
|
|
|
Size
|
0.042”
(1.07 mm) |
0.095”
(2.41 mm) |
0.095”
(2.41 mm) |
0.042”
(1.07 mm) |
Stainless
Steel Tip |
|
Size
|
0.074”
(1.88 mm) |
0.120”
(3.03 mm) |
0.120”
(3.03 mm) |
0.074”
(1.88 mm) |
3mm
diameter |
|
MAXIMUM VARIATION WITHIN GROUP FOR ALL WIRE |
|
||||
|
@
40°C |
±
0.05°C max |
±
0.05°C max |
±
0.05°C max |
±
0.05°C max |
- |
|
|
|
|
|
||
|
±
0.03°C typical |
±
0.03°C typical |
±
0.03°C typical |
±
0.03°C typical |
||
|
@
121°C |
±
0.1°C max |
±
0.1°C max |
±
0.1°C max |
±
0.1°C max |
- |
|
|
|
|
|
||
|
±
0.05°C typical |
±
0.05°C typical |
±
0.05°C typical |
±
0.05°C typical |
||
|
@
300°C |
- |
- |
- |
- |
±0.3°C
max |
|
|
|||||
|
±0.15°C
typical |
|||||

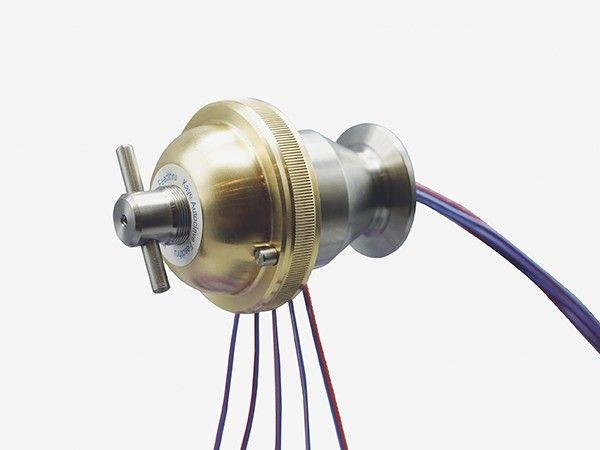

Perfect access for your Thermocouples.
Feedthru fittings provide an easy way to seal the autoclave port when introducing thermocouples into pressure vessel penetrations.

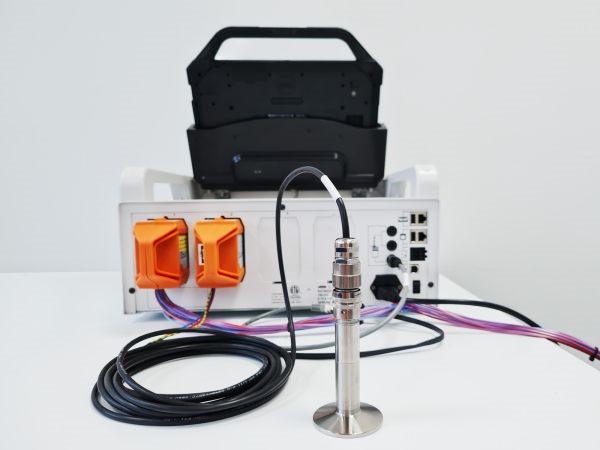

High Precise Sensor for Autoclaves.
It is crucial to use a pressure transducer to measure pressure in parallel with temperature, when qualifying autoclaves. Kaye’s optimized Pressure Transducer works seamlessly with autoclaves and the Validator AVS and Validator 2000, eliminating the need for an external power supply.
