Thermal Validation Systems - Wired and Wireless

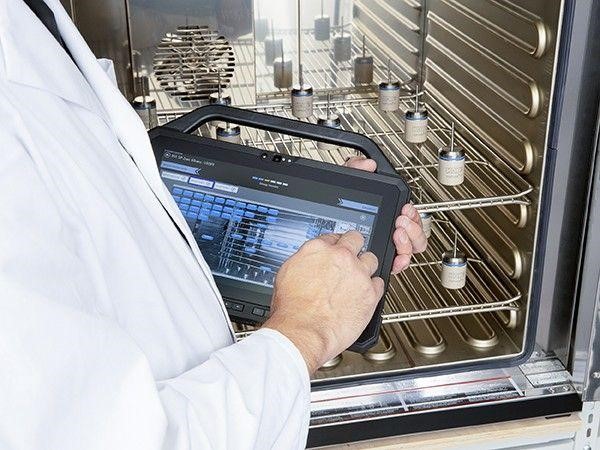

The Kaye product range is relied upon by the world’s leading pharmaceutical and biotechnology companies to validate and monitor critical assets and processes like sterilization as required by governing regulatory bodies.

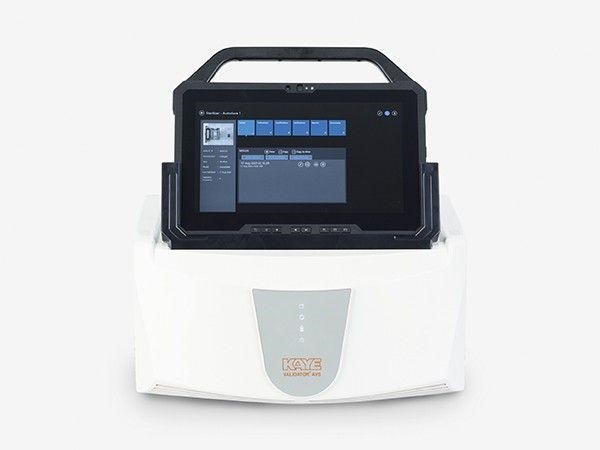

Kaye Validator AVS - Autoclave Temperature Mapping - Temperature Validation System

The Kaye Validator AVS (Advanced Validation System) is an all-in-one temperature mapping and thermal validation system that combines precise sensor measurements with all GxP requirements for calibration and traceability to national standards, while generating compliant reports and managing the validated assets and validation equipment.

Details

Technical specifications

Analog Input: Up to 48

Thermocouples: Type T, J, K,E,B,R,N,S: 0.1°C; T+ limited range 0.01°C resolution

Scanning Speed: 48 channels per second

Internal Memory: 4 gb for data collection

Input Impedance: 10KΩ. Source greater than 10KΩ produces open circuit indication

Common Mode Rejection: 160 db (8 inputs/sec) @ line frequency

145 db (12 inputs/sec) @ line frequency

140 db @ DC

Max. Common Mode Voltage: 100V pk ch-to-ch350V pk ch-to ch to frame ground

Normal Mode Rejection: 82 db @ 60 Hz (8 inputs/sec)69 db @ 60 Hz (12 inputs/sec)

Voltage Input: 0 to 10 VDC

Resolution: 1:72,000

Voltage Input Accuracy: 30 days: ±(0.003% of reading + 2 counts + 4 microvolts)

1 year: ±(0.006% of reading + 2 counts + 4 microvolts)

Sensitivity: 0.5 microvolts/count on most sensitive range

Voltage Temp. Coef.: ±(0.1 microvolts + 0.001% reading)/°C

Compensator Temp. Coef.: ±0.01°C per °C

Input Terminal Temperature Non-uniformity: ±0.1°C from calibrated terminal

Input Ranges: -6 to 30mV, -12 to 60mV, -60 to 300mV, -2 to 10V

Environmental: Temperature: 0 to 50°C (32 to 122°F)

Relative humidity: 95% non-condensing

Power: 90 to 250 VAC, 50/60 Hz

Fuse Rating: 4A Slow Blow

Size: 190H X 411W X 381 mm D (457 mm with SIM)

7.5 in H x 16.2 in W x 15 in D (18 in with SIM)

Weight: 10.60 kg (23.4 lbs)

Battery: Lithium ion with minimum 3 hours of battery backup

Contact Now

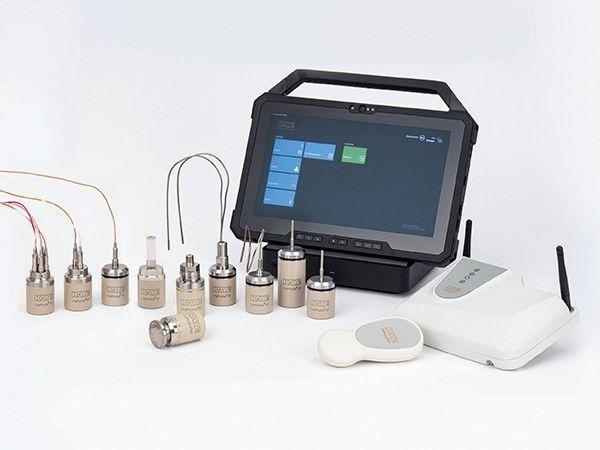

Kaye ValProbe RT (Real Time-RF)

Newest RF Technology collecting wireless real-time temperature and pressure data Kaye ValProbe® RT (Real-Time) is a wireless thermal validation system designed around the specific thermal validation and regulatory needs of the Pharmaceutical and Biotech industries.

Details

Technical specifications

Kaye ValProbe RT Generic Specifications

Base Station Dimensions: 7.6 in x 5.2 in x 2.2 in

Logger Dimensions: Hight: 1,9'' / Diameter 1,4''

Logger Material: Stainless Steel 316L and Peek

Battery Field replaceable: 3.6V Lithium

Sampling Rate: Starting at 1 sec

Data Storage: 100.000 Samples retained in non-volatile memory

Real-Time Clock Accuracy: < 15sec/day

Sensor Type	Single Sensor	Single and Dual Sensor	Single, Dual and 5-Channel	Ultra Flat Surface Sensor	Single P/T Sensor
Sensor Length	1.5, 3, 6, 9" inches	12, 24, 36" inches	40" inches
Sensor Length	38, 76, 152, 229 mm	305, 610, 915 mm	1000 mm
Tip Diameter	0.118"; 3mm	0.095"; 2.4mm	0.095"; 2.4mm	32mm diameter	1/4 NPT Connection fitting
Measurement Range	-85°C to 140°C	-85°C to 400°C	-85°C to 140°C	-85°C to 140°C	0°C to 140°C / 0-5bar abs.
Accuracy	-85°C to 140°C, ±0.1°C	-85°C to 140°C, ±0.1°C	-85°C to 140°C, ±0.1°C	-85°C to 140°C, ±0.1°C
		140°C to 400°C ±0.25°C			0°C to 120°C ±25mb
					120°C to 135°C ±10mb
					135°C to 140°C ±25mb
					0°C to 140°C, ±0.1°C
