Tank Weighing Product

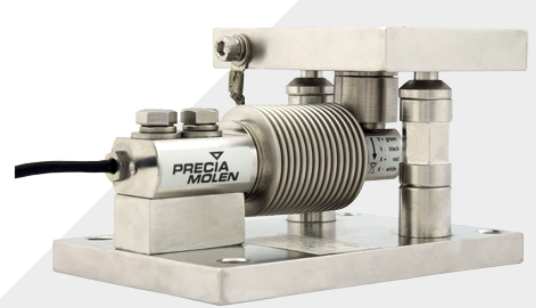

Bending beam load cells BBL-INT – From 20 to 200 kg

He Bending Beam Load (BBL) cell is composed of a proof body and stainless steel bellows. The welding of the bellows to the proof body provides a hermetic seal giving an IP 68 protection. It is available in 4 capacities, namely 20kg, 50kg, 100kg & 200kg.

Its accuracy class C3 approval allows the BBL load cell to be used in an industrial environment where high levels of accuracy are required.

Weighing of small and medium capacity hoppers and vessels.
Refurbishment of scales and mechanical Weighbridges.

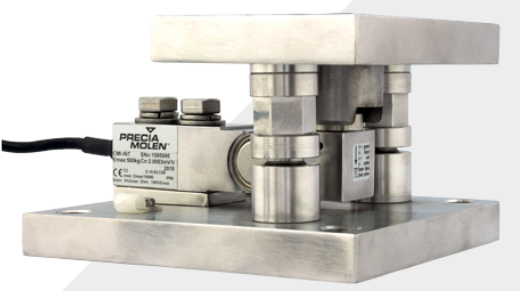

Shear beam load cell CMI-INT – from 300 to 5000 kg

The CMI load cell consists of a stainless steel body and is hermetically sealed by laser welded stainless steel cups. It has been designed for use in industrial environments with an aggressive atmosphere, such as the chemical industry.

CMI load cells have a test certificate for 3 000 d. Meeting the IP 68 standard, CMI load cells are compact and available in these capacities: 300, 500, 1 000, 2 000, 3000 and 5 000 kg. Special mounting parts to adapt the load cell to its mechanical environment are available as an option.

Ex Options:

Ex version for use in explosive zone according to new directive 94/09/CE
CE EEx ia IIC T6
CE type certificate Nr : LCIE 02 ATEX 6083 X

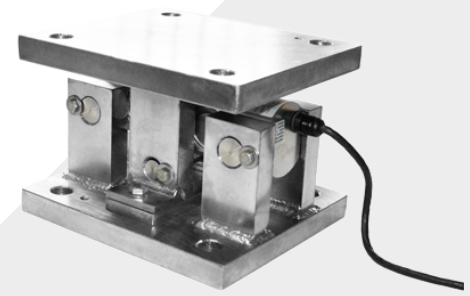

Double-ended shear beam load cell DSL – From 10 to 100 t

The DSL load cell is manufactured in stainless steel and is hermetically sealed to IP 68. It is available in 6 capacities, namely 10t, 2ot, 30t, 50t, 75t & 100t

The characteristics of the double-ended shear beam load cell, together with its “Silo Load Mount” mounting arrangement, ensure it is not influenced by the lateral forces associated with vessels with agitators.

The load mount allows thermal expansion and includes an anti-lifting device. The mount also features a locking device that enables it to be installed without the load cell fitted, eliminating the risk of mechanical or electrical damage to the load cell during vessel installation.

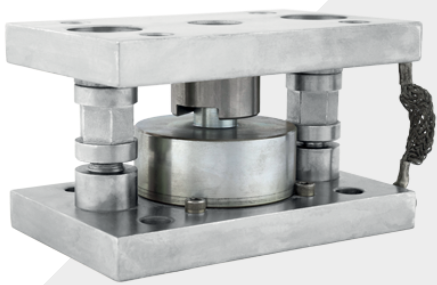

Compression load cell TSL-INT – From 2,5 to 30 t

Weighing of hoppers, tanks and small and medium capacity silos, for non-trade use only. The TSL-INT load cell consists of a stainless steel body (according to IP 68). It is available in 5 capacities:2,5, 5, 10, 15, 30 t.

Its small size and ease of installation make it ideal for all industrial weighing applications. It is available with a mounting kit for weighing silos, hoppers or tanks. This kit is made of stainless steel and it includes an anti-lifting device, a strip preventing lateral forces, and screw stands to simplify installation.

EX Option

Ex version for use in gazous or dusty explosible zone according to new directive 94/09/CE. Marking:

EEx II 2 D T80°C IP68.
EEx ia IIC T6 II 1GD.
