Weighing Indicator

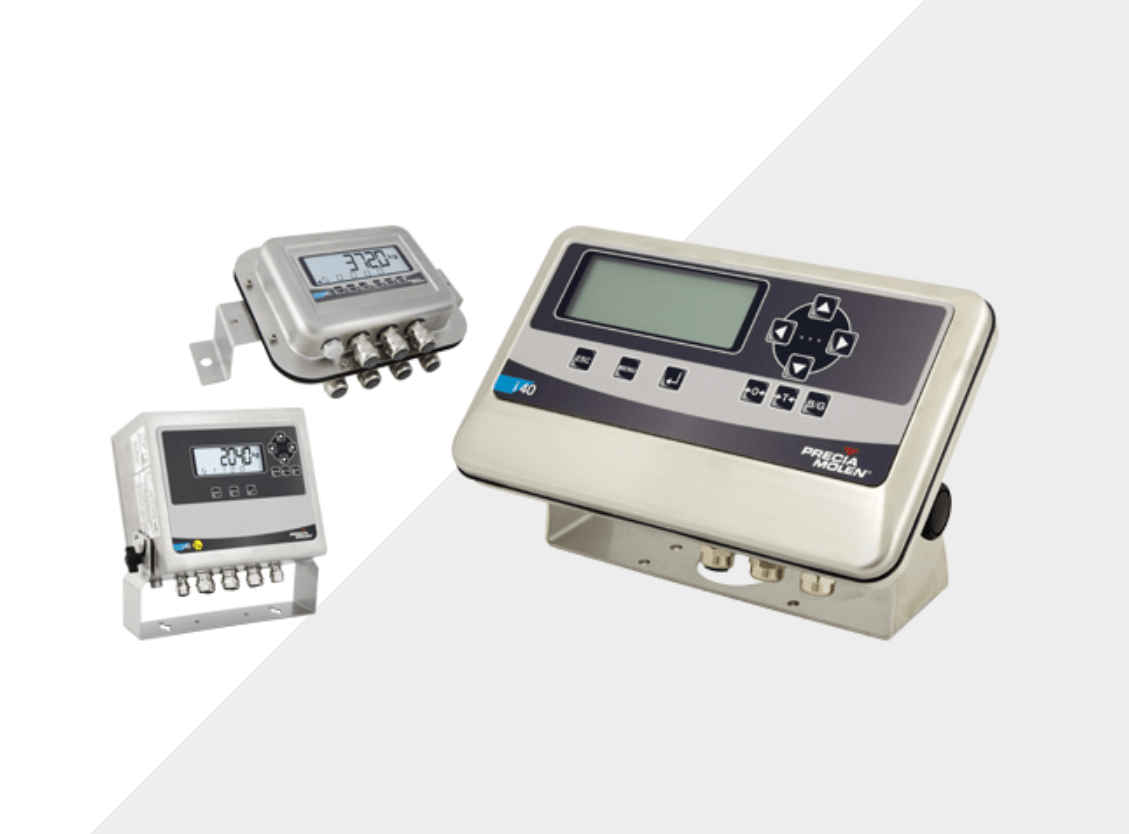

Weighing indicator i40

Weighing indicator i 40 is particularly adapted to process weighing as it easily fits into any industrial process that implies with measurement. The various connection possibilities offer a direct link with the i 40 for most PLC and industrial market PCs. With different types of housing, the indicator can be installed directly into the work environment, into a cabinet or a monitoring terminal.

Available in different versions:

Housing version
Mounting version
DIN rail version
4-load cell junction box version

The i40 indicator is also available for industrial processes in explosible atmosphere Continuous weighing, continuous dosing, EX… The i40 adapts to your needs and your environment according to its software.

Functions

FSC (Field Sequential Color) segment technology
Configurable 7-colour backlighting
Text area with ten 8-mm characters
Light indicators for metrology and field bus operation
High angle of vision and contrast

Characteristics

4/6 wire connections
Up to 100 measurements/second
RS232/RS485 configurable port

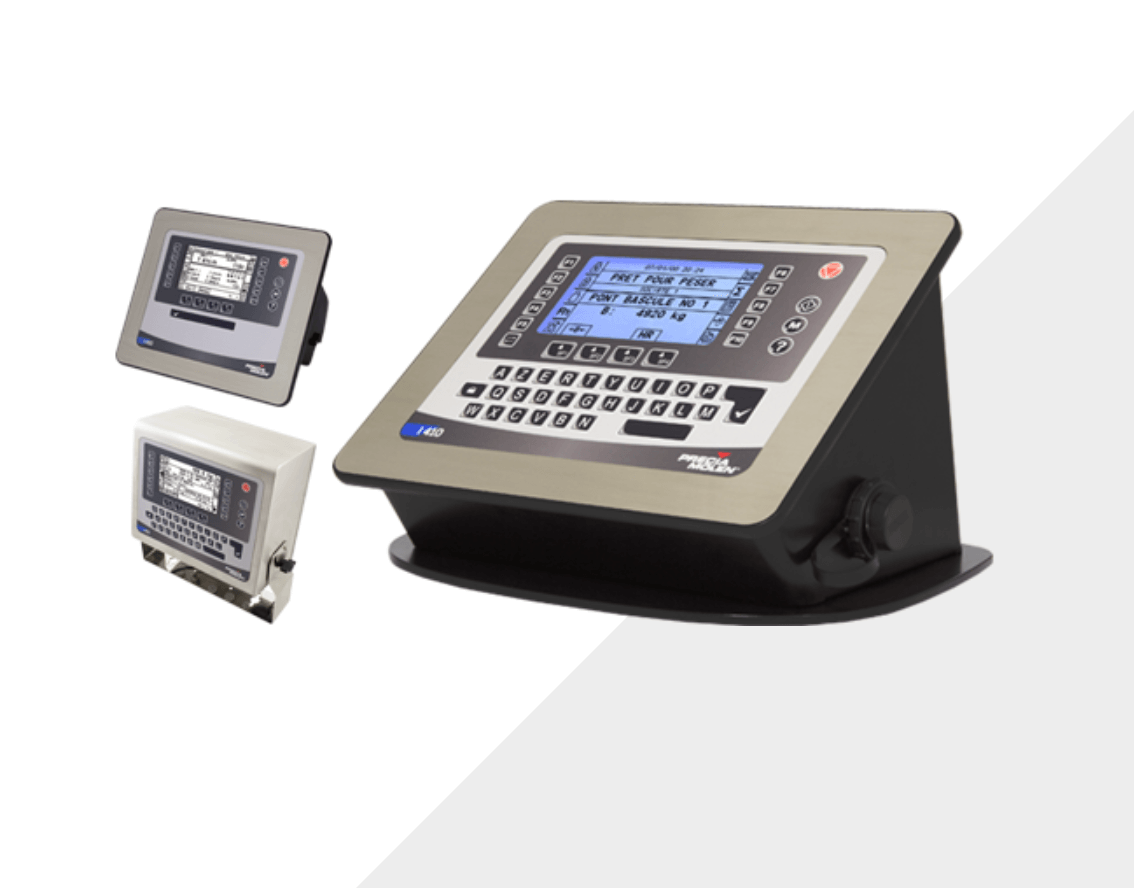

Weighing indicator I 410

The I 410 system provides a new solution to the issues encountered when integrating a weighing function to any industrial process. With a modular and distributed design, the I 410 system is organized around the CANopen field bus, and comprises the following 3 main elements:

A weight TRANSMITTER processing the signal close to the load cells
For better immunity to electromagnetic disturbance. Some transmitter models even integrate the load cell junction box,
A GRAPHIC TERMINAL associated with a weight transmitter per measurement channel managed (up to 31 channels),
A COUPLER providing communication with the most common industrial field buses in the market: Profibus, DeviceNET, Ethernet TCP/MODBUS, Ethernet/IP and Profinet.

Additional modules:

Local or remote digital Inputs/outputs,
RS 232, RS422/485 and USB communication,
Local or remote 4-20 mA or 0-10V analog inputs/outputs,
USB flashdrive for weighing storage and traceability.

With high metrological performance (fast conversion, multi-range and powerful filtering algorithms), meeting the most demanding industrial processes. All components, transmitters and terminals, can be installed directly in explosive area, without impacting performance while allowing communication with the safe area.

Including a PLC-oriented development workshop, compatible with the IEC 1131 standard, the I 410 system allows to deploy basic or complex applications:

“field” applications proposed by PRECIA MOLEN,
data feeding into customer’s information system,
specific development design.
