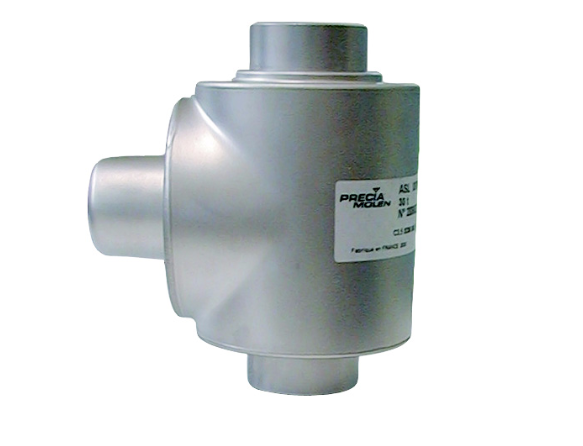

The measurement principle used in the SCL load cell is based on the deformation of beams to which a compression force is applied. It uses strain gauges arranged to form a Wheatstone bridge for conversion of the force to an electrical signal. The SCL load cell is specially designed to be insensitive to excentrical loads while remaining compact.
Read More

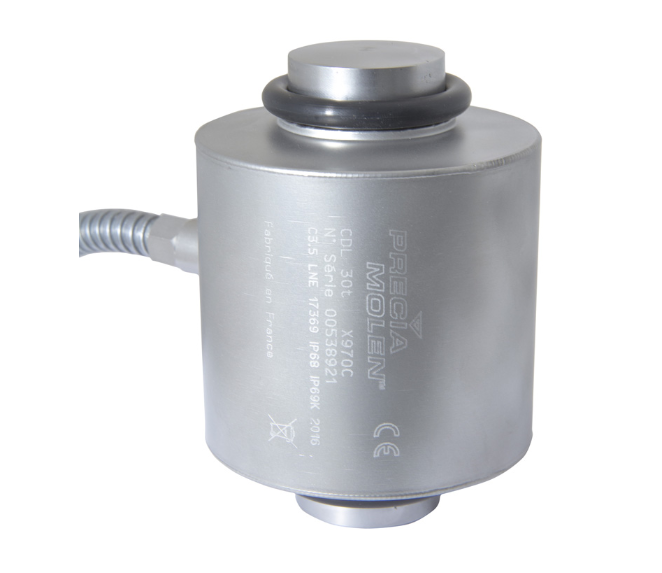

The CDL is a single column compression load cell suitable for weighbridge applications. It has been designed to be little sensitive to load off-centering, while keeping small dimensions. Made of Stainless Steel (304L), the CDL is waterproof inprolonged immersion (IP68) and high pressure cleaning (IP69K)
Read More

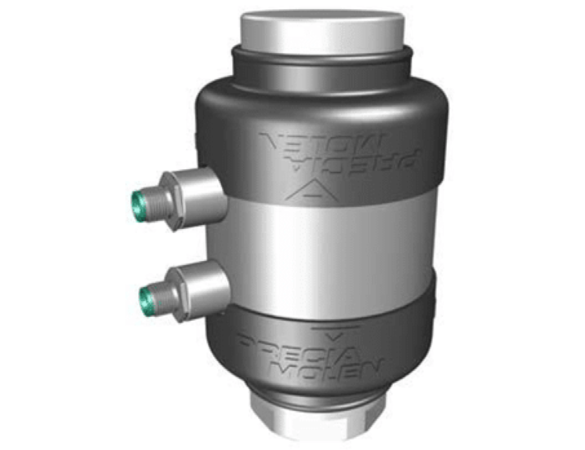

The PSL load cell is a compression load cell for weighbridge equipment. Approved for up to 6,000 intervals, it is made of stainless steel and is waterproof inprolonged immersion (IP68) and high pressure cleaning (IP69K). It is also protected against lightning strikes and rodent attacks.
Thanks to a secure digital network, it preserves the integrity of your data and provides real-time diagnostics taking into account the behavior of each sensor (inclination, rotation) and environmental conditions (temperature, humidity). These elements allow the automatic detection of risky uses: sudden braking and overloading.
Read More

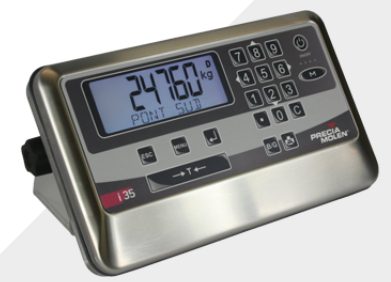

For incoming and outgoing material on the weighbridge, the i35 indicator, equipped with a simple, user-friendly and efficient application software, can meet any totally autonomous weighing application.
Equipped with a ticket printer (sold separately), it is also able to communicate with the industrial PCs on the market and remote weight displays through multiple connections in accordance with the legal metrology aspects.
Economical and innovative, it controls two weighbridge incoming and outgoing traffic lights locally. In addition, it is equipped with an ingenious weighing locking system prohibiting the weighbridge’s use outside working hours. Its power allows it to supply up to 18 PRECIA MOLEN product line analog or digital load cells, thus allowing it to manage very long bridges.
PRECIA MOLEN has developed a user-friendly and efficient weighing management software application to facilitate the daily operator’s work with intuitive weigh data entries. This application offers input/output management by a differentiation of material reception/sending.

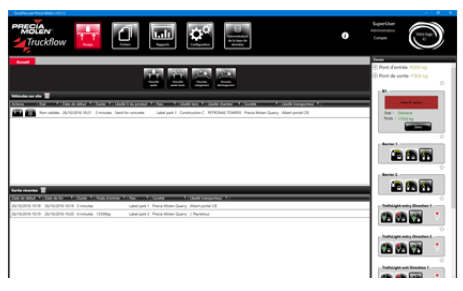

Managing the road traffic around the weighbridge often requires installing barriers and two-color traffic lights. TRUCKFLOW offers electronic monitoring of this equipment, thus avoiding the use of heavy and limiting manual operating panels.
TRUCKFLOW also offers a photo making and storing function, prior to and after weighing. All transactions are stored as database, enabling the administrator to edit daily, monthly or yearly detailed reports that can be listed in 3 hierarchy levels.
Moreover, TRUCKFLOW integrates an access right management function for each user who can customize screens according to their preferences and retrieve these settings every time they use the application.
The TRUCKFLOW software application covers all industrial fields that require vehicle weighing such as waste management, carriers, gas and chemical industries, logistics, etc.
